Disassembly


The AP series and zero-point clamps will attached a dust plug (put into the Chuck when not in use). If necessary, disassemble the clamp and put the dust plug in,

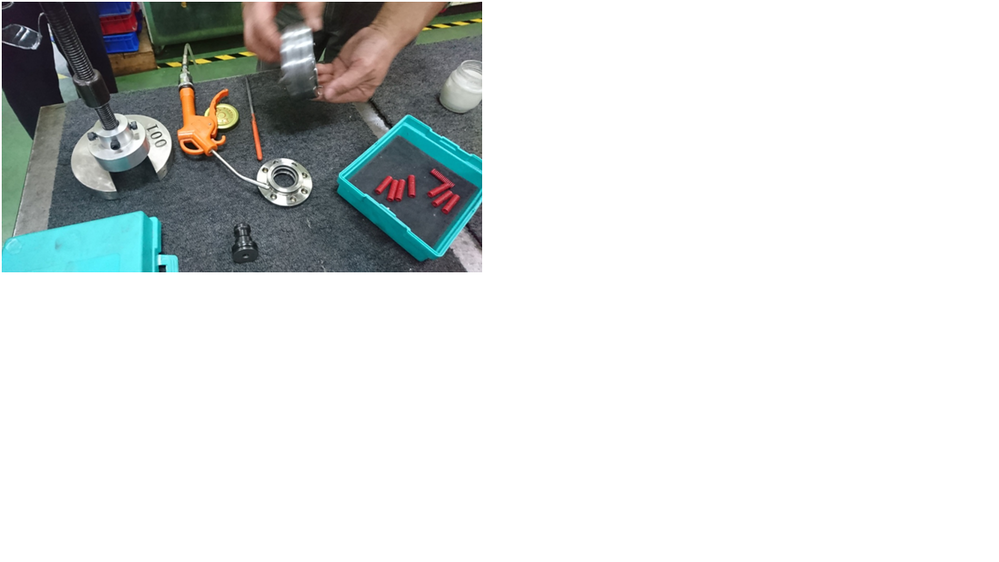

then the turn chuck face down, press it with the jig Fixture (Picture) and then disassemble it to prevent the spring bead jumping out from Chuck.

It is recommended that within the one-year warranty period, please send it back for repairing.

After the out of warranty, you can mail picture & advise the situation for prompt quote.

After many years of use and multiple sets of experience, it can be disassembled and maintained. You can also buy oil seals to replace Vitone degree oil seals.

RE: Oil Seal that you can buy it from our company or buy it yourself.

Socket head screw                            Standard torque

Hex. Socket Cap Bolt

N-m

(kgf-m)

M6

12.7

(1.3)

M8

38.2

(3.9)

M10

72.6

(7.4)

M12

106.9

(10.9)

M14

170.6

(17.4)
