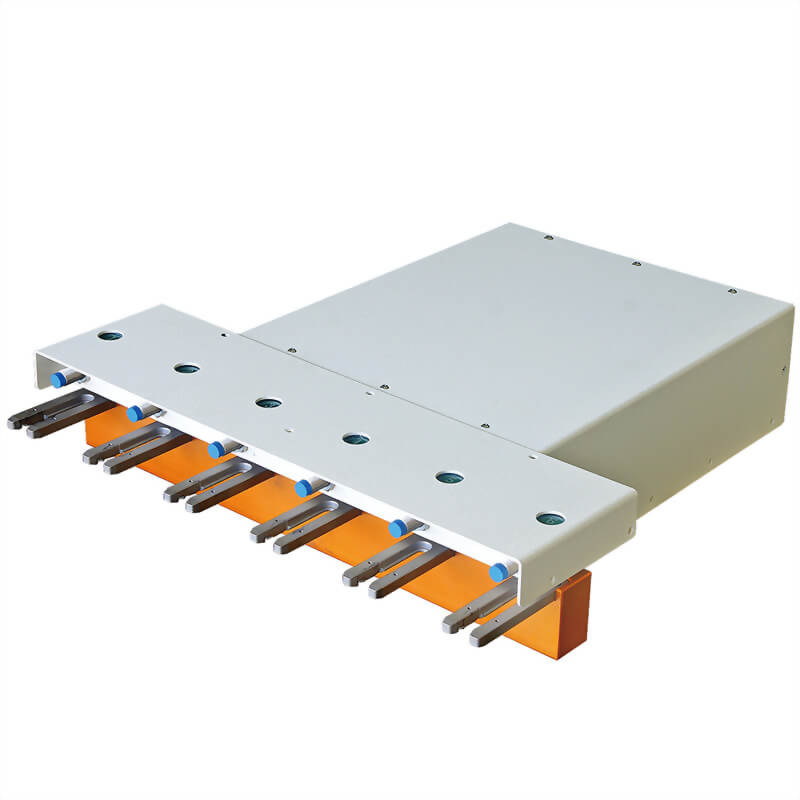

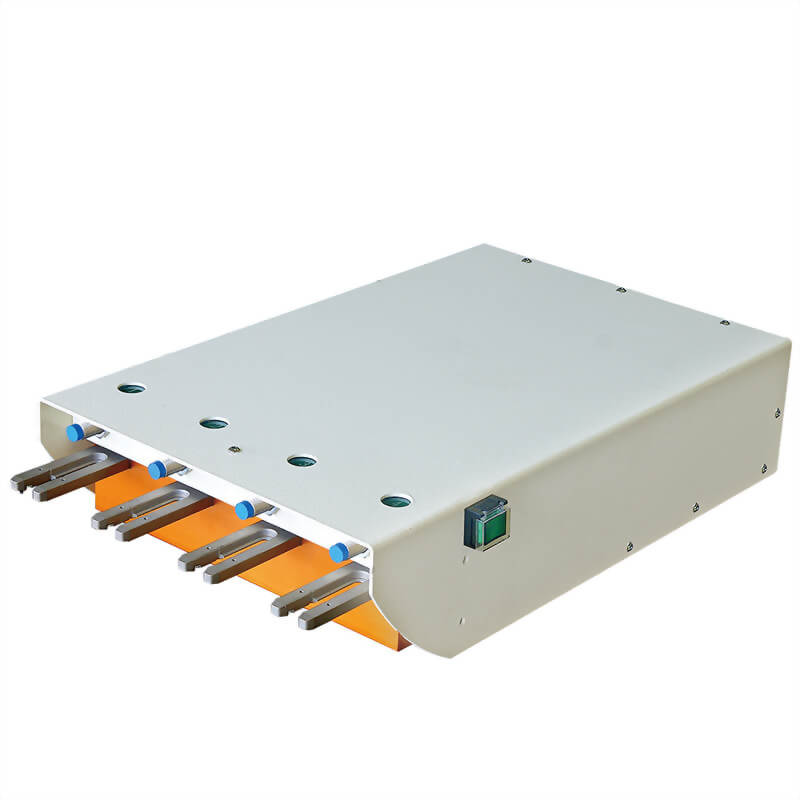

Magazine of Electrode Holder
Model :
AC-4T~10T
If EDM with Magazine : chuck choice must be as following;
CGM E Type Chuck : AE-88EC, AE-88EBW or AP-84EC-13M
CGM R Type Chuck : only AP-84RC-13M
Top quality Planetary Gear Reducer and motor, Euro sensor inside, precise fork and cylinder
EDM Magazine : Automatic Electrode Changer
|
MODEL NO. |
AC-4T |
AC-6T |
AC-8T |
AC-10T |
|
Tool Magazine Capacity / Fork |
4 |
6 |
8 |
10 |
|
Max Forward & Backward Stroke |
220mm |
220mm |
220mm |
220mm |
|
Max Electrode Holder DIM. /mm |
round Ф74/square 74x74 |
round Ф79/square 79x79 |
round Ф79/square 79x79 |
roundФ74/square74 x74 |
|
Max Loading Each Fork Holder |
5kgs |
4kgs |
4kgs |
3.5kgs |
|
Total Max Fork Loading |
20kgs |
24kgs |
32kgs |
35kgs |
|
Control Direction |
PNP-ON |
PNP-ON |
PNP-ON |
PNP-ON |
|
Voltage |
DC 24V |
DC 24V |
DC 24V |
DC 24V |
MAGAZINE Inside :Europe Sensor, Big Brand Gear Reducer, Precision Fork etc.
see it as attached
see it as attached
