Correction Measurement / Calibrating Block

Model : ST-164/ST-165

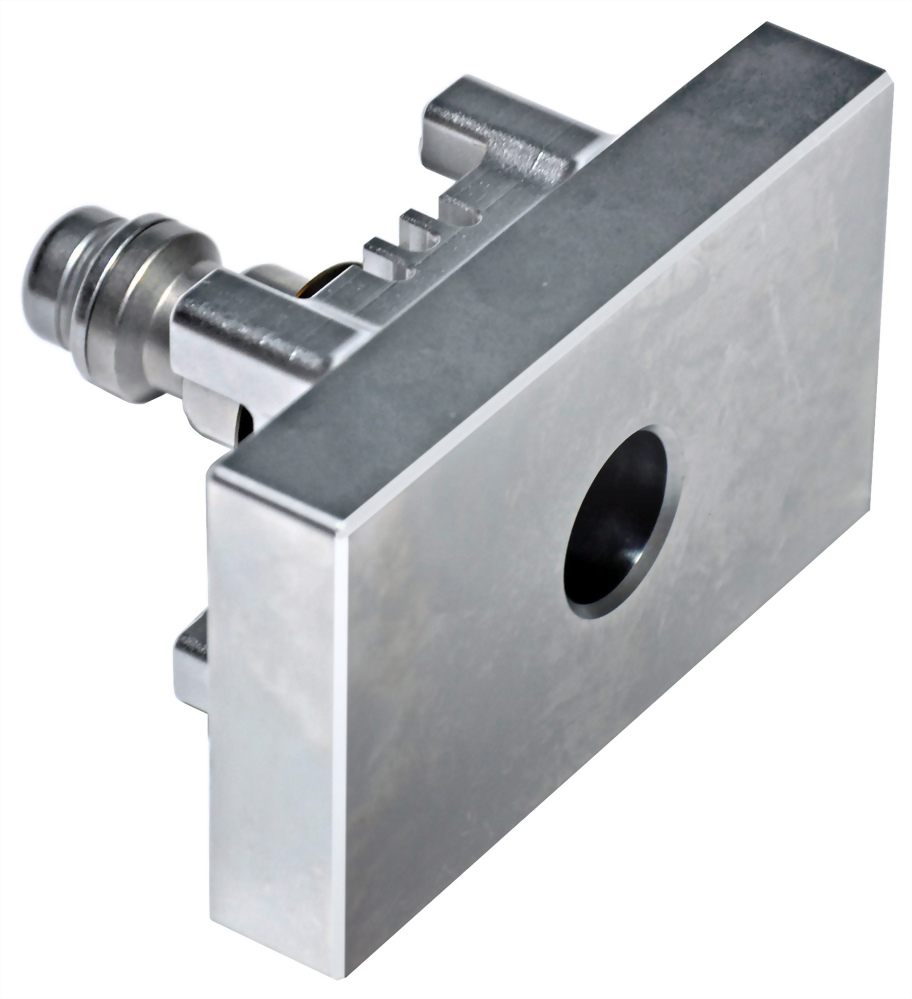

ST-164E Precision Correction Measurement

  • 5 axis CNC milling machine measurement.
  • Dia. 20 for centricity correction.
  • Check the flatness of X, Y axis.
  • W/O drawbar
  • All in one material SUS420, 52 HRC.
  • Dimensions : 100mm x 60mm x 36mm(H)
  • Weight : 1.0kgs



ST-165E Standard Correction Measurement

  • Check the flatness of X, Y axis.
  • 4 ground surfaces for centering and flatness correction.
  • W/O drawbar
  • Checking surface material in SUS420, 52 HRC.
  • Dimensions : 100mm x 60mm x 28.5mm(H)
  • Weight : 0.8kg



ST-164 Precision Correction Measurement

  • 5 axis CNC milling machine measurement.
  • Dia. 20 for centricity correction.
  • Check the flatness of X, Y axis.
  • All in one material SUS420, 52 HRC.
  • Dimensions : 100mm x 60mm x 40mm(H)
  • Weight : 1.05kgs



ST-165 Standard Correction Measurement

  • Check the flatness of X, Y axis.
  • 4 ground surfaces for centering and flatness correction.
  • Electrode holder in Aluminum, W/O drawbar.
  • Checking surface material in SUS420, 52 HRC.
  • Dimensions : 100mm x 60mm x 50mm(H)
  • Weight : 0.5kg
