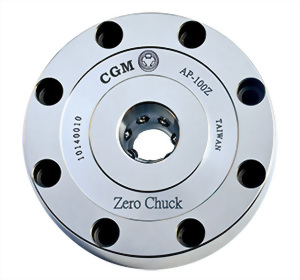

Zero-point Chuck

Model : AP-100Z



Max. Clamping Force

When the external force is bigger than of the clamping mechanism, the steel ball will be stuck so the workpiece won’t drop off but vibrate instead.

Max. clamping force is up to 8000 kgs.

Curve Shape Clamping

The curve shape between the clamping mechanism and steel ball, which increases the clamping force and life span.

The stainless steel ball and can work under pure water.

Spring force is up to 2500 kgs


  • Max. clamping force is up to 8000kgs.
  • Main body, steel ball and accessories are made of stainless steel which can be used in the water. (excl. Spring)
  • With center hole cleaning and oiling functions (can work with pressure switch for testing)
  • Repeat positioning accuracy 0.005mm.
  • Spring force 2500kgs
  • Air pressure clamping force 3500kgs
  • Min. Air pressure 6kg/cm2
  • Material : SUS440, 56 HRC
  • Weight : 1.4 kgs


Chuck Size





Drawbar for Zero-Point Chuck

The combination of these three drawbars can keep the centering point at the same position, and have the pallet out of moving from the effects of thermal expansion and contraction.

The tolerance between zero-point chuck and drawbars must be controlled within ±0.01mm.



PZ-24B Centering drawbar

  • It defines the datum point w/o move.
  • Material : High hardness staliness steel



PZ-24L Compensation drawbar

  • It positions the pallet in one axis only and is capable of slightly move for the other axis.
  • Material : High hardness staliness steel



PZ-24H Chucking drawbar

  • It mainly clamps toward Z axis and allow the X and Y axis with slightly move.
  • Material : High hardness staliness steel




Chuck Base Plate


Zero-point Chuck Base Plate




Z-150 Base Plate With Zero-Point Chuck × 2 Sets

  • Suitable for T slot 100/125mm
  • Steel base plate with 28°±3° HRC
  • Clamping force 2500kgs × 2
  • Clamping power with reclamping 3500kgs × 2
  • Center hole with cleaning function
  • Custom-made spec. is available



Z-200 Base Plate With Zero-Point Chuck × 2 Sets

  • Suitable for T slot 100/125mm
  • Steel base plate with 28°±3° HRC
  • Clamping force 2500kgs × 2
  • Clamping power with reclamping 3500kgs × 2
  • Center hole with cleaning function
  • Custom-made spec. is available

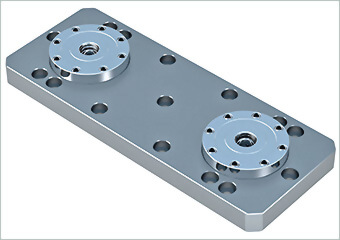

Z-250 Base Plate With Zero-Point Chuck × 2 Sets

  • Suitable for T slot 100/125mm
  • Steel base plate with 28°±3° HRC
  • Clamping force 2500kgs × 2
  • Clamping power with reclamping 3500kgs × 2
  • Center hole with cleaning function
  • Custom-made spec. is available



Z-42020 Base Plate With Zero-Point Chuck × 4 Sets

  • Suitable for T slot 100/125mm
  • Steel base plate with 28°±3° HRC
  • Clamping force 2500kgs × 4
  • Clamping power with reclamping 3500kgs × 4
  • Center hole with cleaning function
  • Custom-made spec. is available



Z-62020 Base Plate With Zero-Point Chuck × 6 Sets

  • Suitable for T slot 100/125mm
  • Steel base plate with 28°±3° HRC
  • Clamping force 2500kgs × 6
  • Clamping power with reclamping 3500kgs × 6
  • Center hole with cleaning function
  • Custom-made spec. is available



Z-200L Vertical Base Plate With Zero-Point Chuck

  • Suitable for T slot 100/125mm
  • Steel base plate with 28°±3° HRC
  • Clamping force 2500kgs × 2
  • Clamping power with reclamping 3500kgs × 2
  • Center hole with cleaning function
  • It can work with Vise, Magnetic Chuck or be fixed on the machine table.
  • Custom-made spec. is available




Accessories


Chuck Accessories

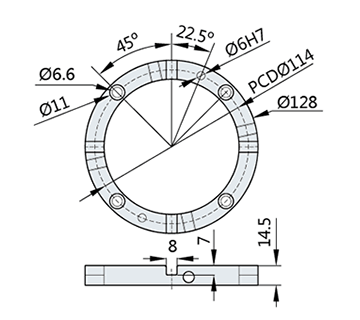

Z-1004 Positioning Ring

  • When using the chuck singly, it can help to positon the direction of pallet.
  • Stainless Steel with 52 HRC
  • Custom-made spec. is available


Z-1003 Chip Cover Ring Example▼
Z-1004 Positioning Ring Example▼




Workpiece Pallet


P-150~250A Workpiece Pallet

  • Standard Accessory
  • Centering drawbar PZ-24B × 1
  • Compensation drawbar PZ-24L × 1
  • Material : High-strength Alluminum Alloy
  • Custom-made available.
    (Incl. material, spec., hole/screw thread)


TYPE A H L W
P-150A 150 30 330 168
P-200A 200 30 380 198
P-250A 250 30 430 198

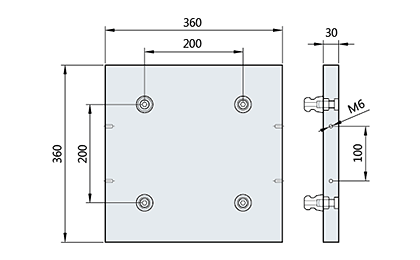

P-4360A Workpiece Pallet

  • Standard Accessory
  • Centering drawbar PZ-24B × 1
  • Compensation drawbar PZ-24L × 1
  • Chucking drawbar PZ-24H × 2
  • Material : High-strength Alluminum Alloy
  • Custom-made available.
    (Incl. material, spec., hole/screw thread)

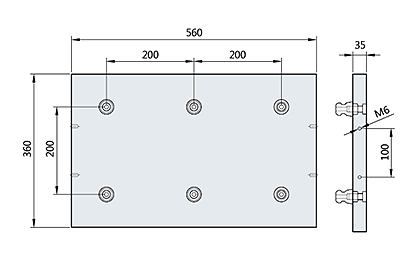

P-6560A Workpiece Pallet

  • Standard Accessory
  • Centering drawbar PZ-24B × 1
  • Compensation drawbar PZ-24L × 1
  • Chucking drawbar PZ-24H × 4
  • Material : High-strength Alluminum Alloy
  • Custom-made available.
    (Incl. material, spec., hole/screw thread)



Chuck Base Plate


Zero-point Chuck Base Plate




Z-150 Base Plate With Zero-Point Chuck × 2 Sets

  • Suitable for T slot 100/125mm
  • Steel base plate with 28°±3° HRC
  • Clamping force 2500kgs × 2
  • Clamping power with reclamping 3500kgs × 2
  • Center hole with cleaning function
  • Custom-made spec. is available



Z-200 Base Plate With Zero-Point Chuck × 2 Sets

  • Suitable for T slot 100/125mm
  • Steel base plate with 28°±3° HRC
  • Clamping force 2500kgs × 2
  • Clamping power with reclamping 3500kgs × 2
  • Center hole with cleaning function
  • Custom-made spec. is available



Z-250 Base Plate With Zero-Point Chuck × 2 Sets

  • Suitable for T slot 100/125mm
  • Steel base plate with 28°±3° HRC
  • Clamping force 2500kgs × 2
  • Clamping power with reclamping 3500kgs × 2
  • Center hole with cleaning function
  • Custom-made spec. is available



Z-42020 Base Plate With Zero-Point Chuck × 4 Sets

  • Suitable for T slot 100/125mm
  • Steel base plate with 28°±3° HRC
  • Clamping force 2500kgs × 4
  • Clamping power with reclamping 3500kgs × 4
  • Center hole with cleaning function
  • Custom-made spec. is available



Z-62020 Base Plate With Zero-Point Chuck × 6 Sets

  • Suitable for T slot 100/125mm
  • Steel base plate with 28°±3° HRC
  • Clamping force 2500kgs × 6
  • Clamping power with reclamping 3500kgs × 6
  • Center hole with cleaning function
  • Custom-made spec. is available



Z-200L Vertical Base Plate With Zero-Point Chuck

  • Suitable for T slot 100/125mm
  • Steel base plate with 28°±3° HRC
  • Clamping force 2500kgs × 2
  • Clamping power with reclamping 3500kgs × 2
  • Center hole with cleaning function
  • It can work with Vise, Magnetic Chuck or be fixed on the machine table.
  • Custom-made spec. is available




Accessories


Chuck Accessories



Z-1004 Positioning Ring

  • When using the chuck singly, it can help to positon the direction of pallet.
  • Stainless Steel with 52 HRC
  • Custom-made spec. is available


Z-1003 Chip Cover Ring Example▼
Z-1004 Positioning Ring Example▼




Workpiece Pallet


P-150~250A Workpiece Pallet

  • Standard Accessory
  • Centering drawbar PZ-24B × 1
  • Compensation drawbar PZ-24L × 1
  • Material : High-strength Alluminum Alloy
  • Custom-made available.
    (Incl. material, spec., hole/screw thread)


TYPE A H L W
P-150A 150 30 330 168
P-200A 200 30 380 198
P-250A 250 30 430 198


P-4360A Workpiece Pallet

  • Standard Accessory
  • Centering drawbar PZ-24B × 1
  • Compensation drawbar PZ-24L × 1
  • Chucking drawbar PZ-24H × 2
  • Material : High-strength Alluminum Alloy
  • Custom-made available.
    (Incl. material, spec., hole/screw thread)


P-6560A Workpiece Pallet

  • Standard Accessory
  • Centering drawbar PZ-24B × 1
  • Compensation drawbar PZ-24L × 1
  • Chucking drawbar PZ-24H × 4
  • Material : High-strength Alluminum Alloy
  • Custom-made available.
    (Incl. material, spec., hole/screw thread)
