E Type Standard Correction Measurement
Home
Products
Calibration & Measurement Device
Correction Measurement
E Type Standard Correction Measurement
E Type Standard Correction Measurement
Model :
ST-165
Q'ty :
Add To Inquiry
Description
Specifications
Applications

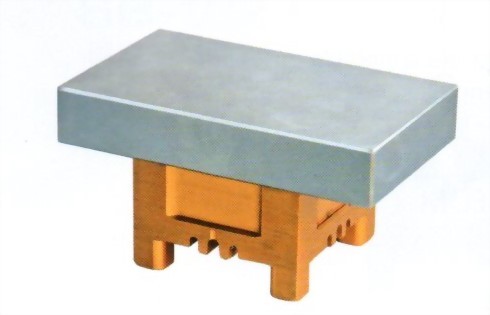

ST-165
Standard Correction Measurement
Check the flatness of X, Y axis.
4 ground surfaces for centering and flatness correction.
Electrode holder in Aluminum, W/O drawbar.
Checking surface material in SUS420, 52 HRC.
Dimensions : 100mm x 60mm x 50mm(H)
Weight : 0.5kg
