E Type Standard Correction Measurement

Model : ST-165E

ST-165E Standard Correction Measurement

  • Check the flatness of X, Y axis.
  • 4 ground surfaces for centering and flatness correction.
  • W/O drawbar
  • Checking surface material in SUS420, 52 HRC.

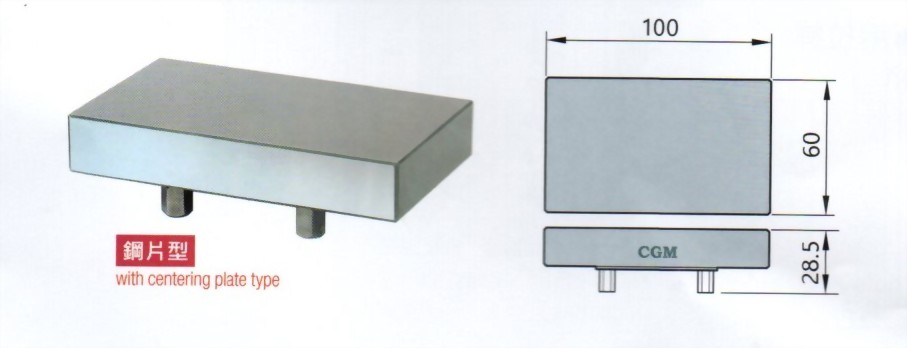

  • Dimensions : 100mm x 60mm x 28.5mm(H)
  • Weight : 0.8kg
