Correction Measurement

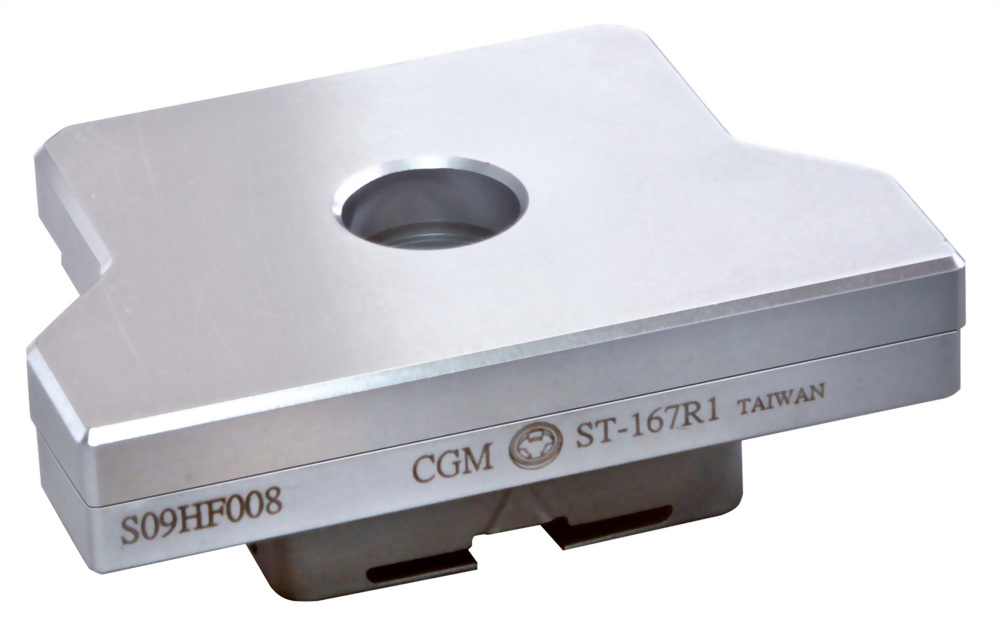

Model : ST-167R1

Correction Measurement ST-167R1

Must equipped for 5 axis CNC Milling machine for chuck of centering point (hole of Dia. 20mm)

flatness of X Y axis.

one side precise grinding.

material ; SUS420 , 52 HRC



Correction Measurement

ST-167R4 (4 side precise grinding)

Must equipped for 5 axis CNC Milling machine for chuck of centering point (hole of Dia. 20mm)


flatness of X Y axis.

one side precise grinding.

material ; SUS420 , 52 HRC



as attached
